FR-LSH (Fire Retardant - Low Smoke and Low Halogen) Cable
in Triple Extrusion Technology.
FR-LSH (Fire Retardant - Low Smoke and Low Halogen) Cable in Triple Extrusion Technology.
Designed, to provide superior performance and durability, made with 100% pure copper and insulated with double PVC insulation. Our FR LSH cables are available in a range of sizes and configurations to meet the unique needs of our customers.
Technical Specification
| Nominal area of conductor | Number / Nom. Dia. of wire | Thickness of insulation (Nom) | Approx over all dia | Resistance (Max) Per km @20°C | Current Rating |
|---|---|---|---|---|---|
| Sq.mm | mm | mm | mm | ohms | Amps |

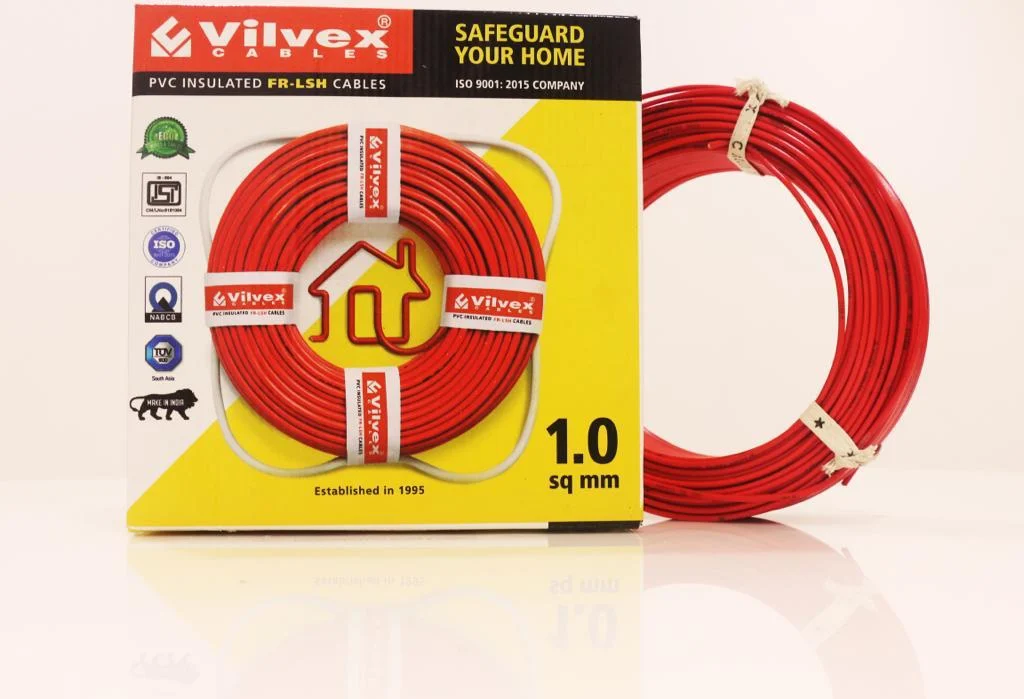

| 1.0 | 14/0.3 | 0.7 | 2.8 | 18.1 | 15 |

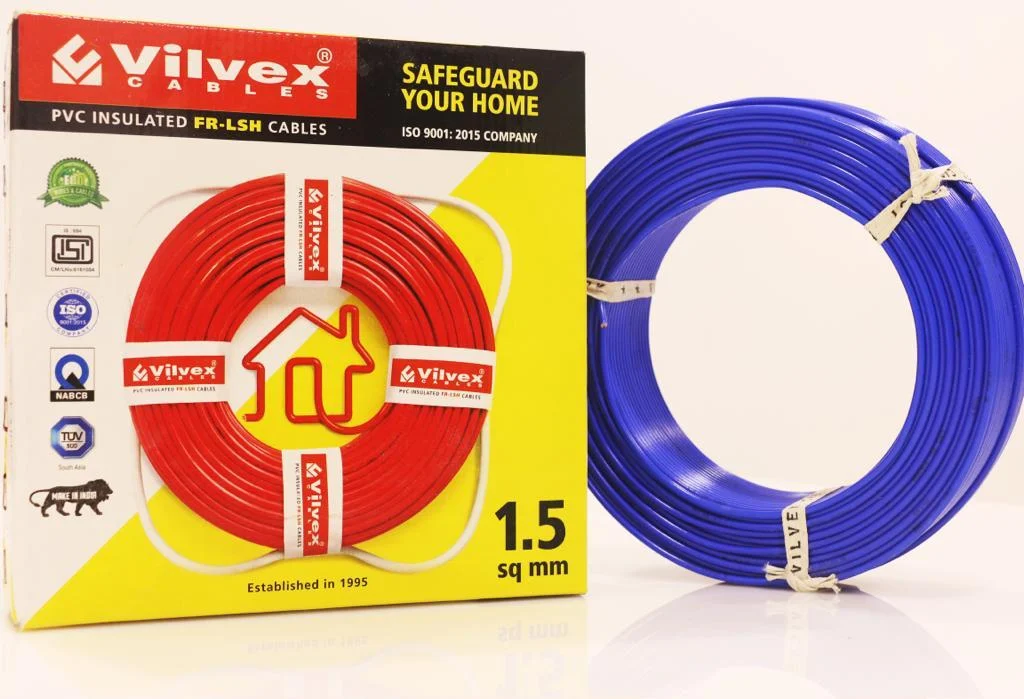

| 1.5 | 22/0.3 | 0.7 | 3.0 | 12.1 | 16 |

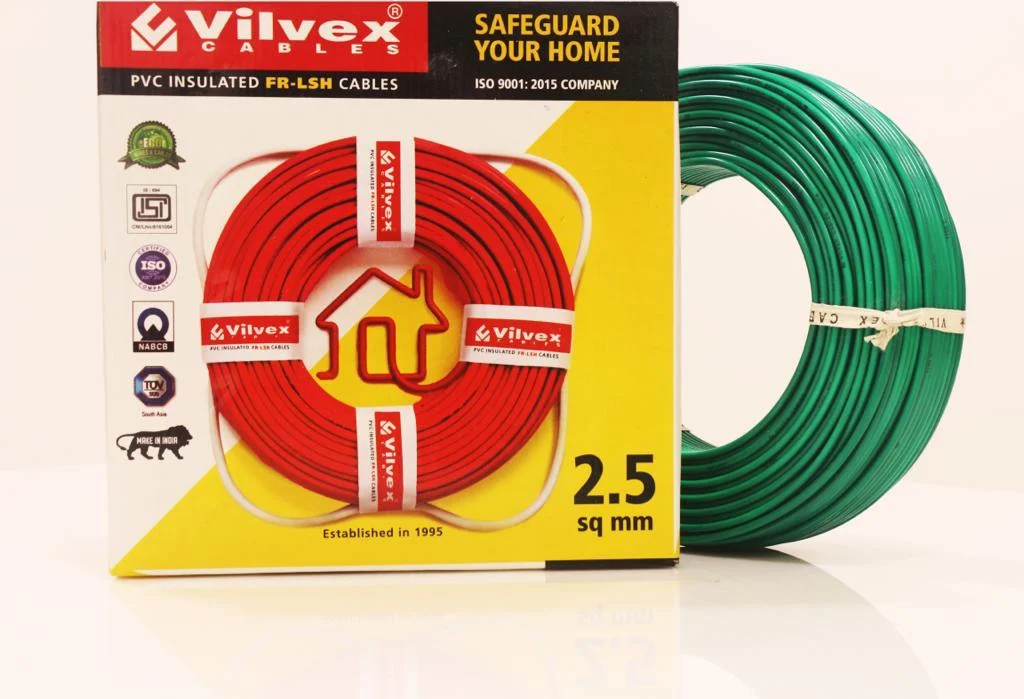

| 2.5 | 36/0.3 | 0.8 | 3.8 | 7.41 | 20 |
| 4.0 | 56/0.3 | 0.8 | 4.5 | 4.61 | 28 |

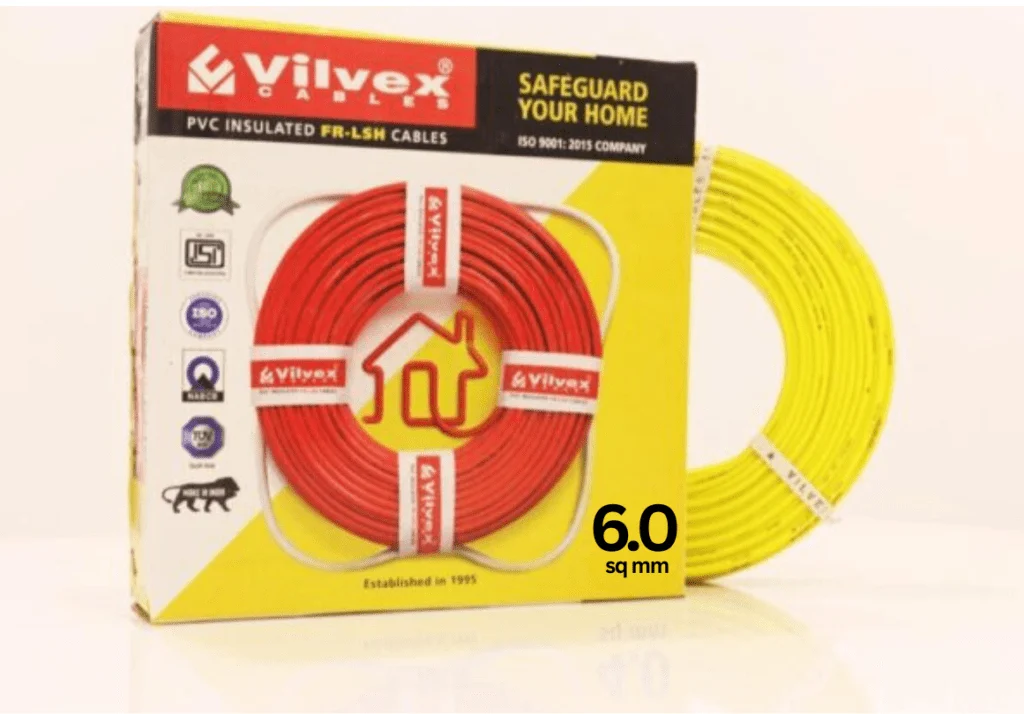

| 6.0 | 84/0.3 | 0.8 | 5.2 | 3.08 | 33 |

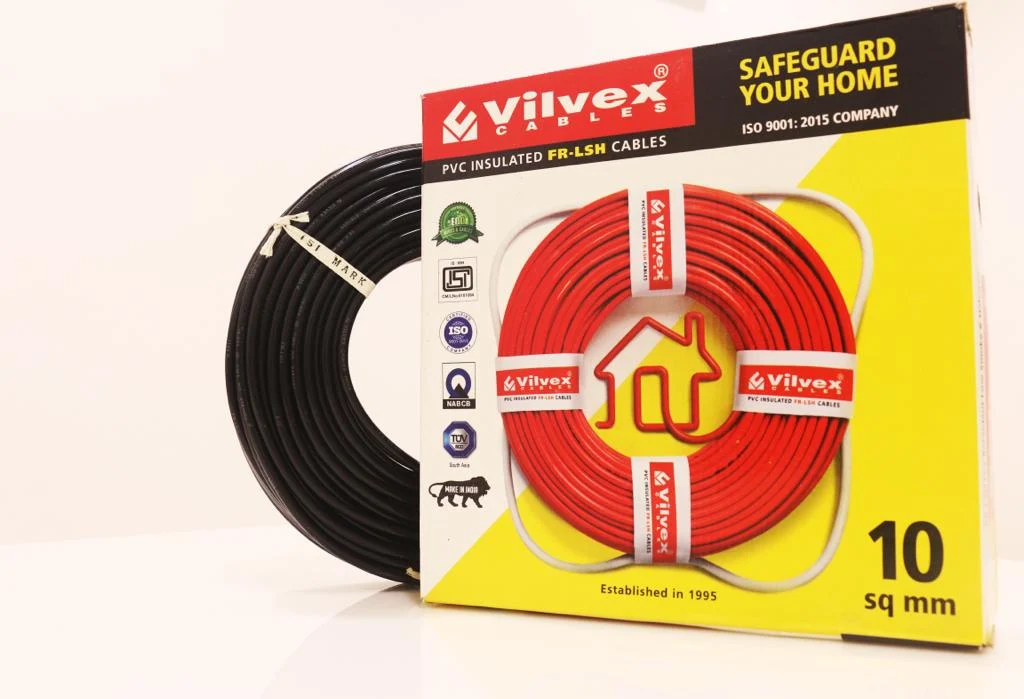

| 10.0 | 140/0.3 | 1.0 | 6.2 | 1.83 | 44 |
